美国UVP Analytik Jena锌灯主要用于与紫外吸收细胞和检测器使用而设计的,并常用于空气污染监测装置。UVP锌灯也叫二氧化硫污染监测灯,分为径向出线和
美国UVP Analytik Jena锌灯主要用于与紫外吸收细胞和检测器使用而设计的,并常用于空气污染监测装置。UVP锌灯也叫二氧化硫污染监测灯,分为径向出线和轴向出线两种方式,上海赫曼生物代理销售,欢迎咨询。

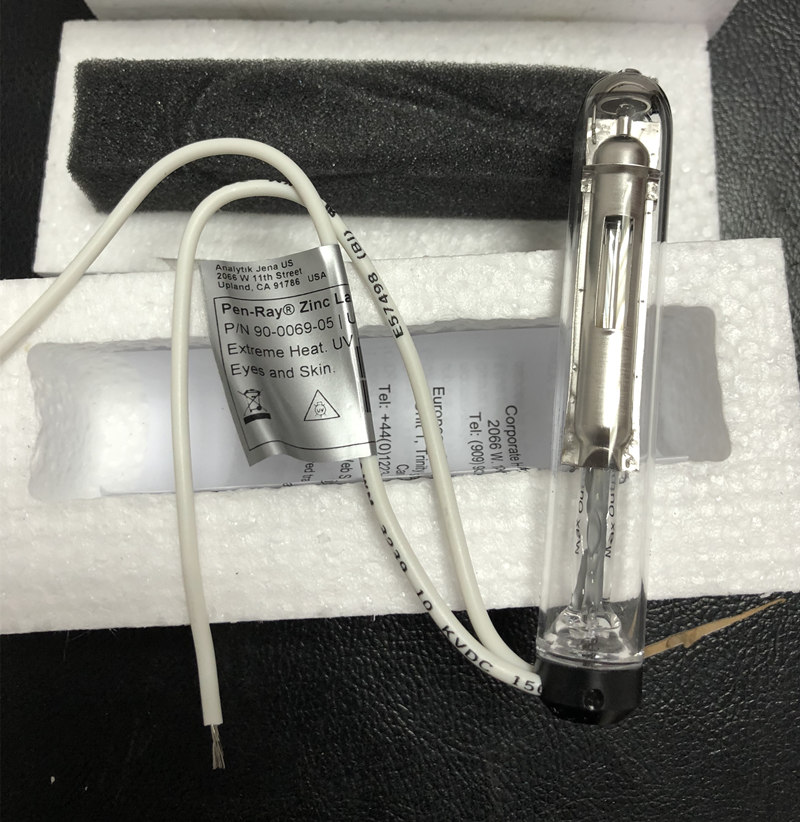

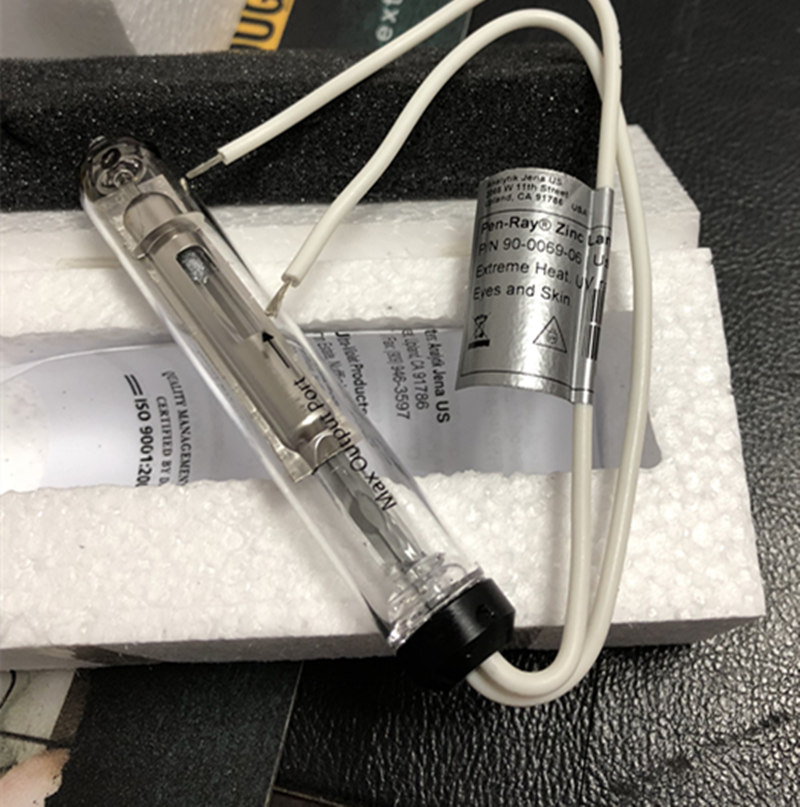

Analytik Jena 90-0069-05和90-0069-06美国UVP锌灯的主要特点
• 在某些应用中锌灯也可以代替氘灯,由于锌灯优越的热稳定性、寿命长和突出的波长214nm能量峰值
• 电引线在灯头顶端侧面(侧/径向引线)出线或在灯头顶端中心(端/轴向引线)出线
• 引线长度也可选
• Zinc lamps can also substitute for deuterium lamps in some applications due to the zinc lamps' superior thermal stability, long life and prominent 214 nm energy peak
• The electrical leads enter the lamp base either at the perimeter of the base (side/radial leads) or straight into the center of the base (end/axial leads)
• Lead lengths are also optional
锌灯的技术规格
规格 | |
波长 | 214nm处的能量峰值 |
电引线 | 侧/径向或端/轴向 |
锌灯尺寸 | 总长度:4.33"(110.0mm) 点燃长度:20.0mm入口 石英直径:0.6"(17.0mm) |
镉灯尺寸 | 总长度:4.33"(110.0mm) 点燃长度:24.0mm入口 石英直径:0.6"(17.0mm) |
美国UVP锌灯/二氧化硫监测灯的参数信息:
Zinc and Cadmium Lamps | ||||||
---|---|---|---|---|---|---|
型号 | Lighted Length | Total Length | Quartz Diameter | Gas Fill | Special | Recommended Power Supply |
90-0069-05 | 0.79" (20 mm) | 4.33" (110 mm) | 0.70" (17.8 mm) | 锌灯 | 8" (203 mm) 径向引线 | PS-9 99-0033-02 (230 V) |
90-0069-06 | 0.79" (20 mm) | 4.33" (110 mm) | 0.70" (17.8 mm) | 锌灯 | 8" (203 mm) 轴向引线 | PS-9 99-0033-02 (230 V) |
90-0069-10 | 0.79" (20 mm) | 4.33" (110 mm) | 0.70" (17.8 mm) | 锌灯 | 8" (203 mm) 径向引线 | PS-9 99-0033-02 (230 V) |
90-0069-11 | 0.79" (20 mm) | 4.33" (110 mm) | 0.70" (17.8 mm) | 锌灯 | 17" (431.8 mm) 轴向引线 | PS-9 99-0033-02 (230 V) |
90-0069-16 | 0.79" (20 mm) | 4.33" (110 mm) | 0.70" (17.8 mm) | 锌灯 | 12" (304.8 mm) 轴向引线 | PS-9 99-0033-02 (230 V) |
90-0071-03 | 0.94" (24 mm) | 4.33" (110 mm) | 0.70" (17.8 mm) | 镉灯 | 8" (203 mm) 径向引线 | PS-9 99-0033-02 (230 V) |
90-0071-06 | 0.94" (24 mm) | 4.33" (110 mm) | 0.70" (17.8 mm) | 镉灯 | 8" (203 mm) 径向引线 | PS-9 99-0033-02 (230 V) |
美国UVP Analytik Jena锌灯常规应用
空气污染监测
分析仪器
波长校准
光谱仪
